SHL – Sykono
High Performance Lift

A maintenance-free and highly versatile open lift designed for intensive daily use.
Developed for trailer and body builders, the SHL Sykono High Performance Lift delivers maximum reliability, zero height loss, and exceptional flexibility without the need for service intervals.

Specifications

Lifting capacity: 2000 KG
Steel frame (installation to truck body) KTL coated: Available
Alloy platform with steel frame: Available
Steel pulleys: Available
2 lift and 2 tilt cylinders: Available
Chains and chain guides: Available
Palfinger Warning flags: Available
Synthetic sliding parts: Available
Hydraulic hoses: Available
3 button hand cable control (7 meters) Available
External Power Pack 24V/3Kw (supplied seperately): Available
Platform overhead lock: Available

SMART LIFTING FOR INTENSIVE OPEN APPLICATIONS

The Sykono High Performance Lift is engineered for customers who require a robust, maintenance-free lifting solution suitable for continuous and intensive operation. Thanks to its unique construction, the system operates without service intervals and without height loss within the lift structure.

By positioning the lifting cylinders in a vertical movement behind the lift columns and using steel flyer chains instead of traditional steel cables, the High Performance Lift achieves exceptional durability, operational reliability, and long-term performance.

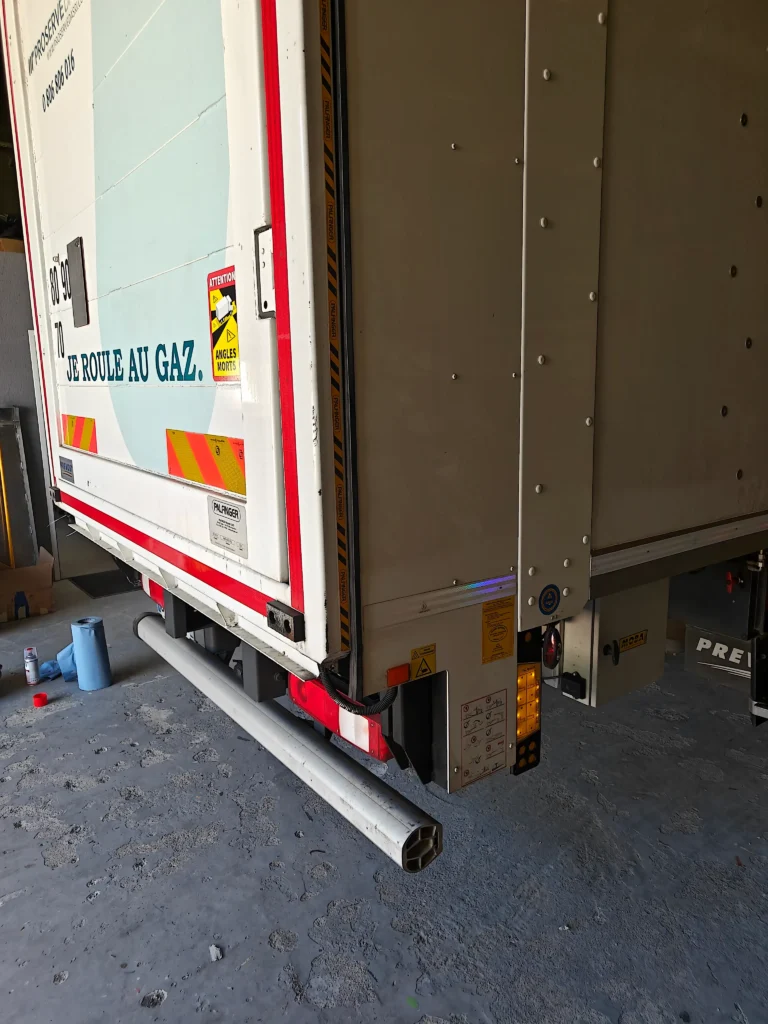

The advanced engineering of the High Performance Lift makes it possible to mount the system on a rigid truck while retaining a trailer coupling. This makes the SHL Sykono High Performance Lift one of the most versatile and robust loading and unloading solutions available on the market.

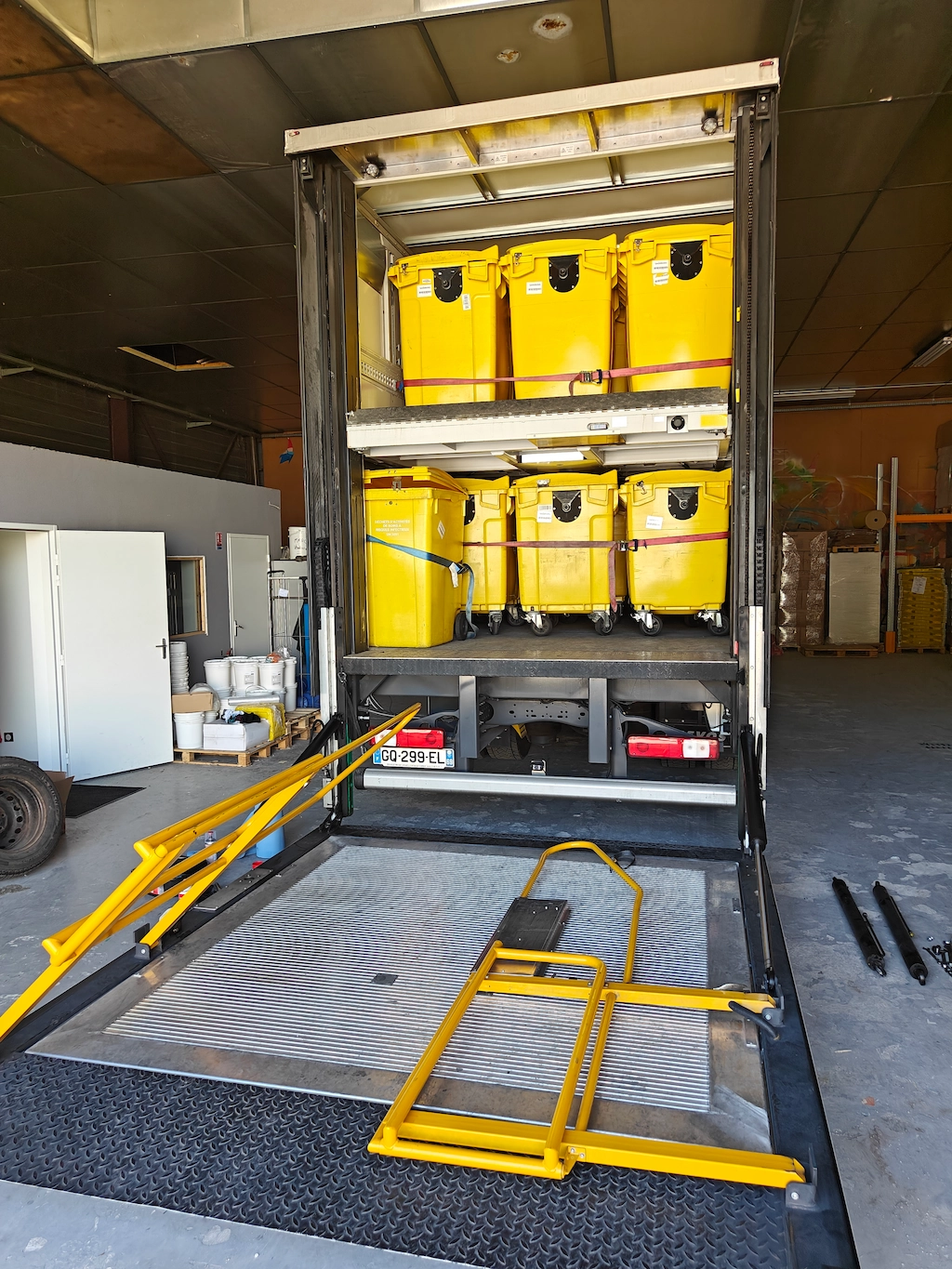

With the option for double-deck loading, end users can maximize loading space and significantly reduce transport movements. This increases productivity and efficiency while also contributing to a more sustainable transport operation.

With a lifting capacity of 2000 kg, the lift is ideally suited for loading and unloading most goods. Its space-efficient and lightweight design allows higher payloads without increasing vehicle weight.

Tailored features. Backed by service

The Sykono High Performance Lift can be configured with a range of optional features to meet specific safety and operational requirements, including:

Various ramp tip configurations
Integrated lighting options
Safety railings
Optional support legs for enhanced stability

Supported by Palfinger technology and Sykono’s professional after-sales service, the High Performance Lift ensures safe, reliable, and long-term operation in demanding environments.

See our service

At a glance – key highlights

Maintenance-free and fault-resistant construction
Designed for very intensive use
Side-column drive with vertical lifting cylinders
Steel flyer chains for maximum durability
Suitable for rigid trucks with trailer coupling
Easy integration of support legs
Double-deck loading capability
Lifting capacity of 2000 kg
Lightweight, space-efficient, and low-maintenance design
Durable and sustainable investment for trailer and body builders
